# 读取 CSV 数据框

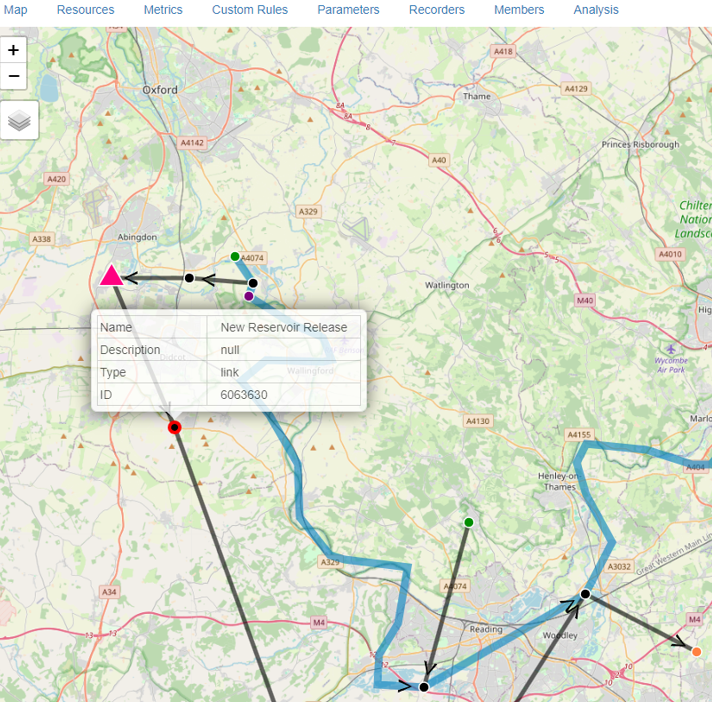

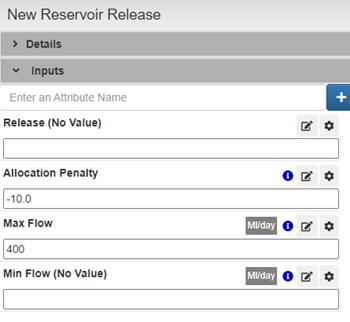

前往 **新水库发布** 节点和更改 **最大流量** 到 **-400**，这将允许水流过这个节点

<figure><img src="/files/msJPqiMkjxzfmShXVYmz" alt=""><figcaption></figcaption></figure>

<figure><img src="/files/FhqLzbXMILmEHBzAlshS" alt=""><figcaption></figcaption></figure>

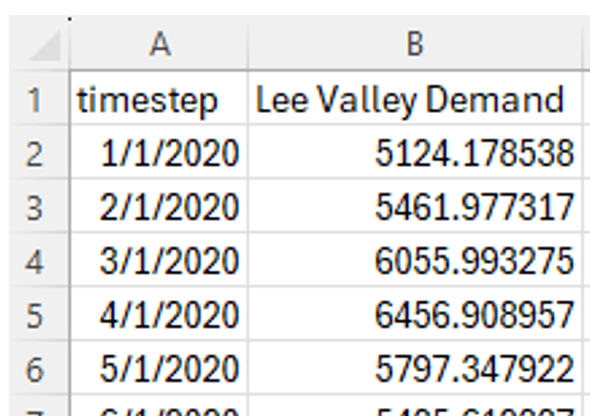

下载的文件， **泰晤士河\_李\_山谷\_demand.csv**，包含一个由两个关键列构成的时间序列数据集：

**时间步长：** 此列将用作时间序列的索引。它代表数据集中的时间进度，允许按时间顺序进行组织。

**李谷需求：** 此列包含代表李谷需求值的数据。

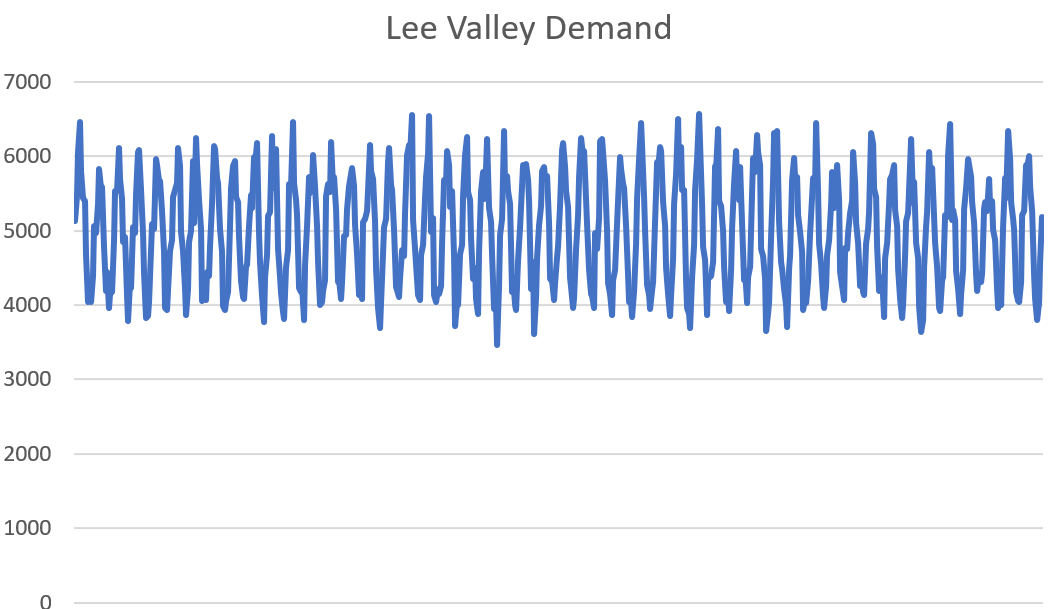

<figure><img src="/files/7JdyVVq35BonF2v7xmOE" alt="" width="443"><figcaption><p><strong>泰晤士河_李_Valley_Demand</strong></p></figcaption></figure>

<figure><img src="/files/ftU3yWJ7pAMLc741LbyS" alt=""><figcaption></figcaption></figure>

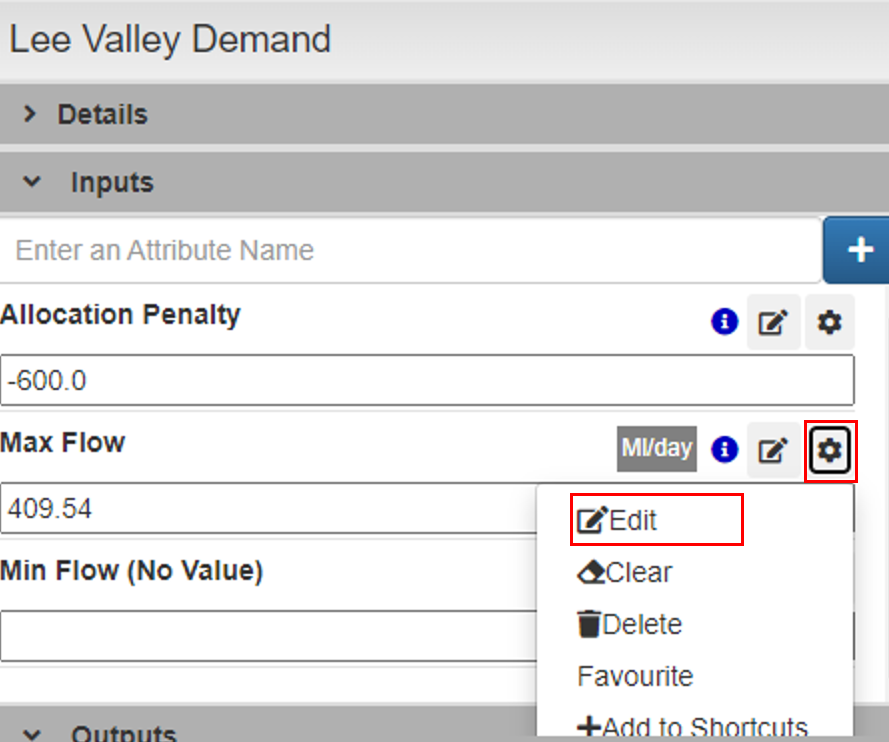

选择输出节点 **李谷需求** 然后编辑 **最大流量**

<figure><img src="/files/dpMUI54fONVMoOdDpRGN" alt="" width="563"><figcaption></figcaption></figure>

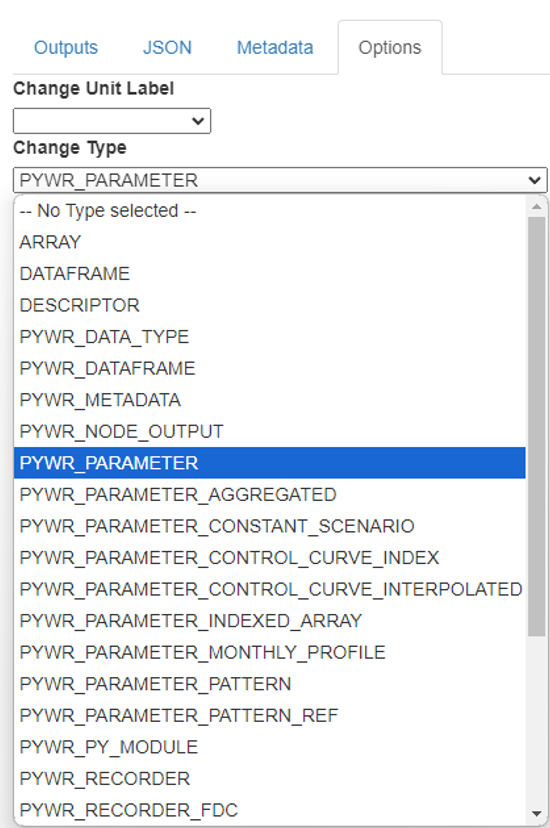

在 “选项” 中选择 **PYWR\_参数**

<figure><img src="/files/rhRpl1sFkxTl5eMMdPYs" alt=""><figcaption></figcaption></figure>

粘贴以下配置：

\`\`json { “类型”：“数据框参数”， “网址”：“泰晤士河\_李\_Valley\_demand.csv “， “专栏”：“李谷需求”， “index\_col”: “时间步”， “parse\_dates”：真 }

```

现在它应该如下图所示：

<figure><img src="../../.gitbook/assets/image (7) (1).png" alt=""><figcaption></figcaption></figure>

### 结果

点击节点 Lee Valley 需求 > 输出 > 模拟\ _flow 查看仿真结果

<figure><img src="../../.gitbook/assets/image (38).png" alt="" width="475"><figcaption></figcaption></figure>



<figure><img src="../../.gitbook/assets/image (36).png" alt=""><figcaption><p>simulated_flow（李谷需求）</p></figcaption></figure>



现在检查一下 **模拟\_卷** 为了 **新水库**

<figure><img src="../../.gitbook/assets/image (37).png" alt=""><figcaption><p>模拟体积（新水库）</p></figcaption></figure>
```


---
