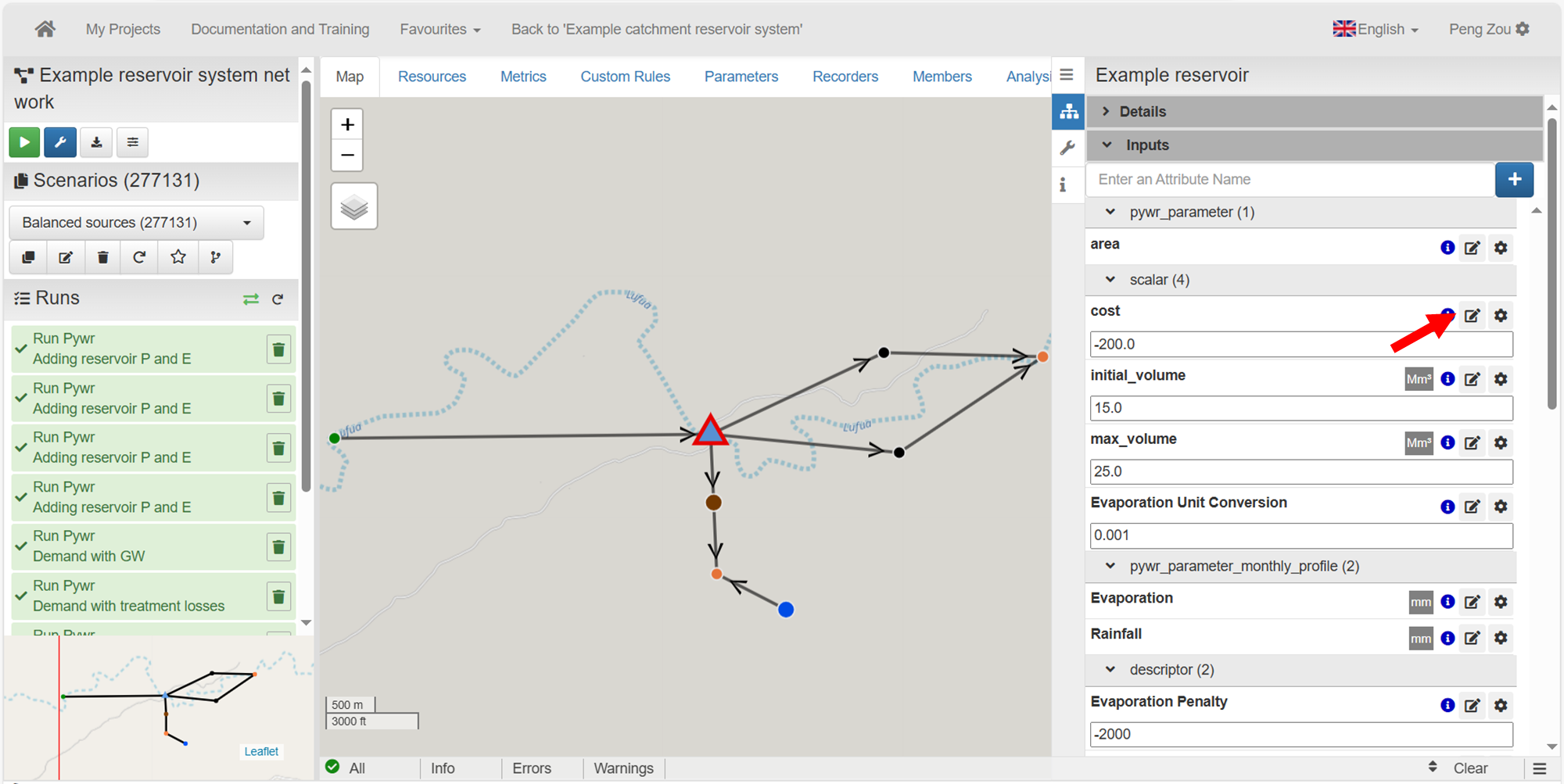

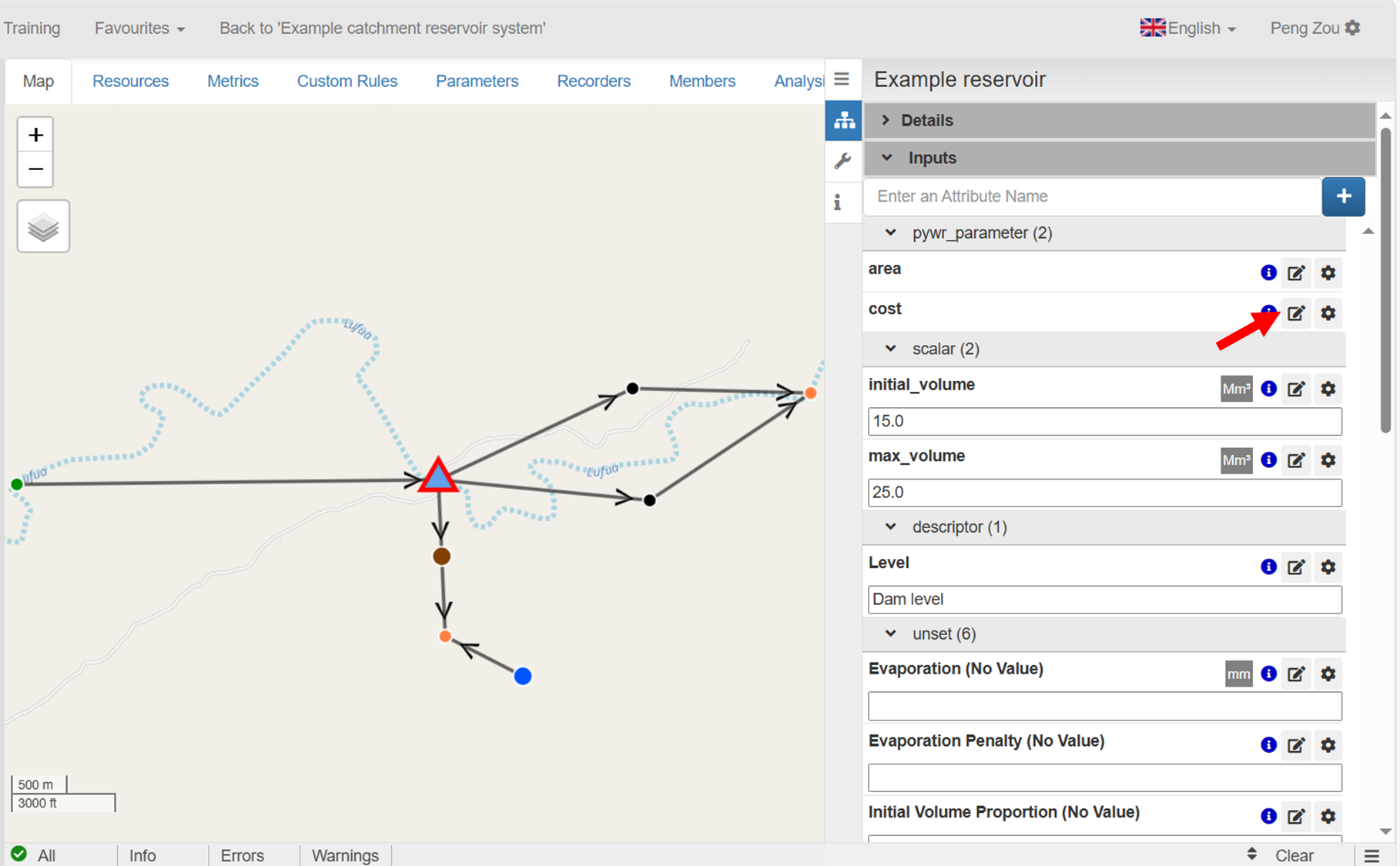

> For the complete documentation index, see [llms.txt](https://water-strategy.gitbook.io/waterstrategy/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://water-strategy.gitbook.io/waterstrategy/zhong-guo-ren/jiao-cheng/creating-a-reservoir-system/additional-exercises-using-allocation-penalties-and-control-rules.md). # 使用分配罚款和控制规则来平衡来源 ## 使用分配罚款来平衡来源分配罚款可用于平衡需求来源的使用。在之前的练习中 **水库示例** 静态分配惩罚为-200。参数可用于使分配补偿根据水库的实时存储量而变化。这可以通过以下方式完成 **插值音量参数。** 一旦水库的分配补偿变为动态的，就可以将其与其他来源的分配罚款一起使用，以平衡水库的使用。 1。克隆 **'添加水库 P 和 E** 场景并命名新的场景 **'平衡来源'** 2。编辑水库节点的 “分配惩罚” 属性（“成本” 属性）并将其类型更改为 **'PYWR\_参数'**

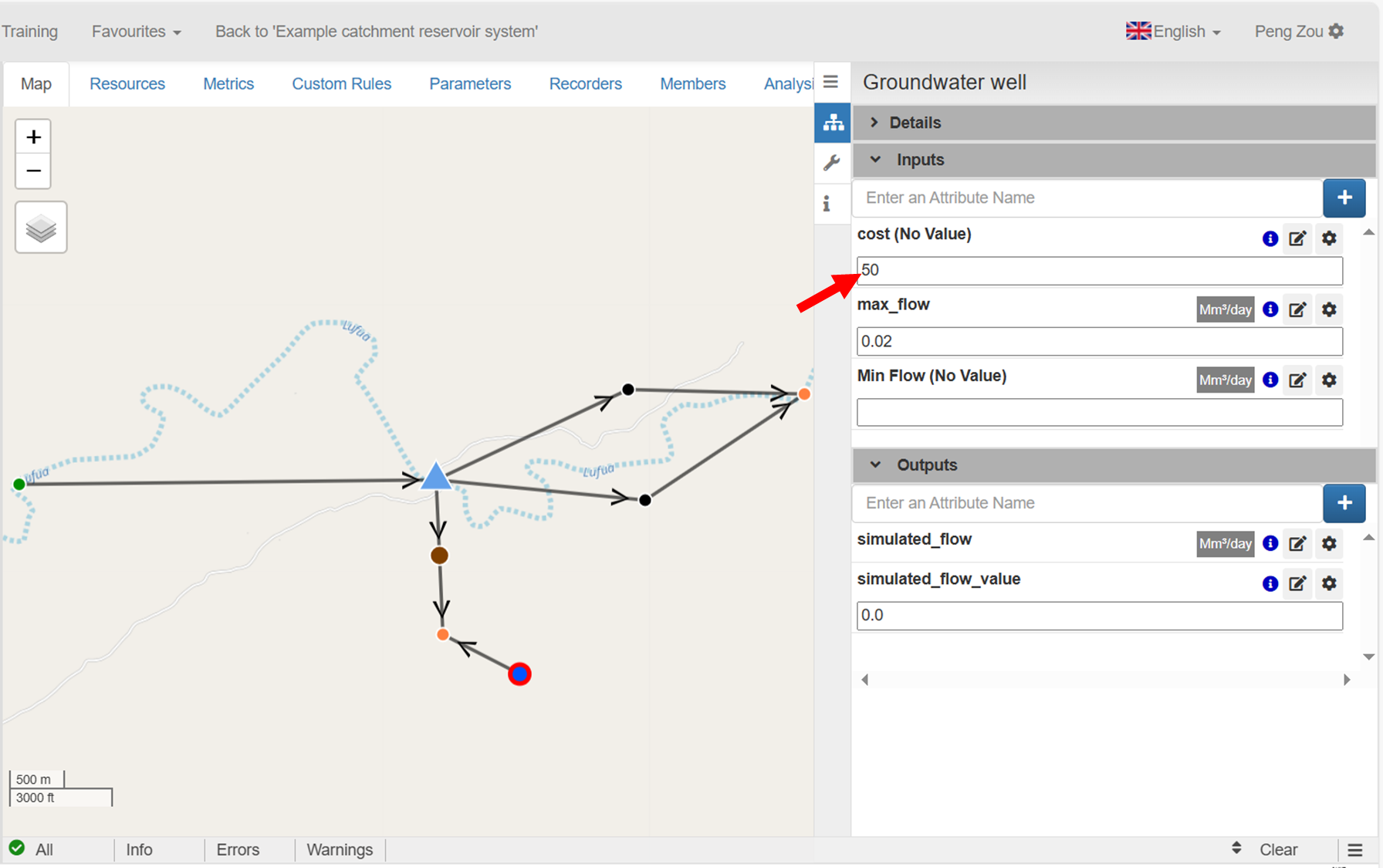

3.在 JSON 选项卡中，粘贴以下 JSON 代码。此插值体积参数在水库已满时为其分配惩罚为 0，在水库空置时为-200 分配惩罚。当水库处于满水和空水之间时，分配罚款将在 0 和-200 之间进行插值。 ``` { “类型”：“插值音量参数”， “节点”：“示例水库”， “音量”：[ 0， 25 ]， “价值观”：[ -200， 0 ]， “interp_kwargs”：{ “种类”：“线性” }， “评论”：“交易量：Mm3，值：分配惩罚” } ``` 4。在地下水输入节点上，设置 **最大\_流** 到 0.02 并设置 **分配罚款**至 50.0。50 的正分配惩罚使得地下水节点仅在水库的分配罚款小于-**1234567890**\_\_（即水库已满 **1234567890**% 时）才使用地下水节点。这意味着当水库快满时，将不使用地下水。只有在水库充分消耗后，地下水节点才会开始向需求供水。

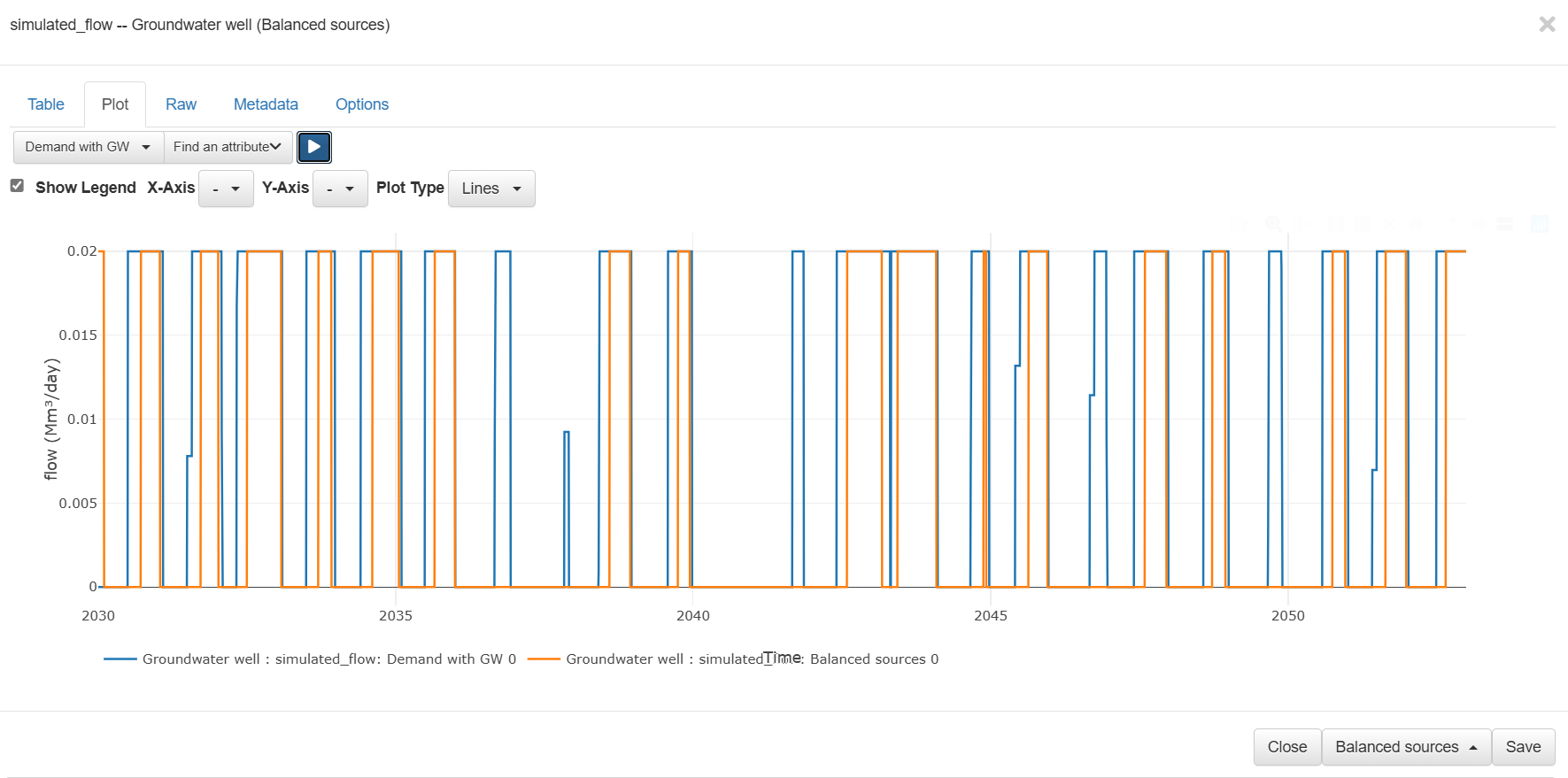

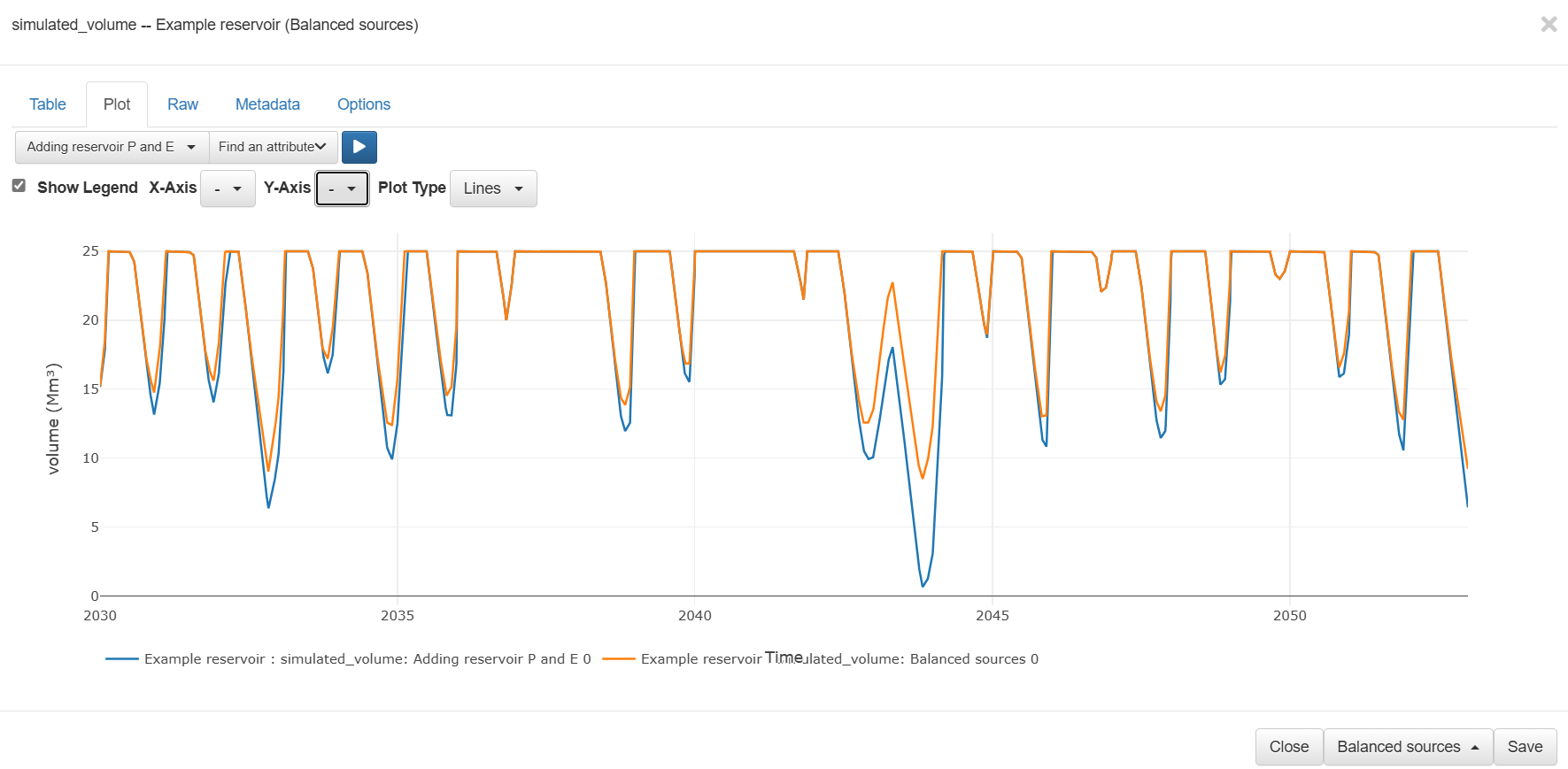

5。运行模型并查看 **模拟\_流** 地下水输入节点并与之比较 **GW 的需求；** 还有 **模拟\_卷** 水库节点并将两者与水库节点进行比较 **添加水库 P 和 E**。

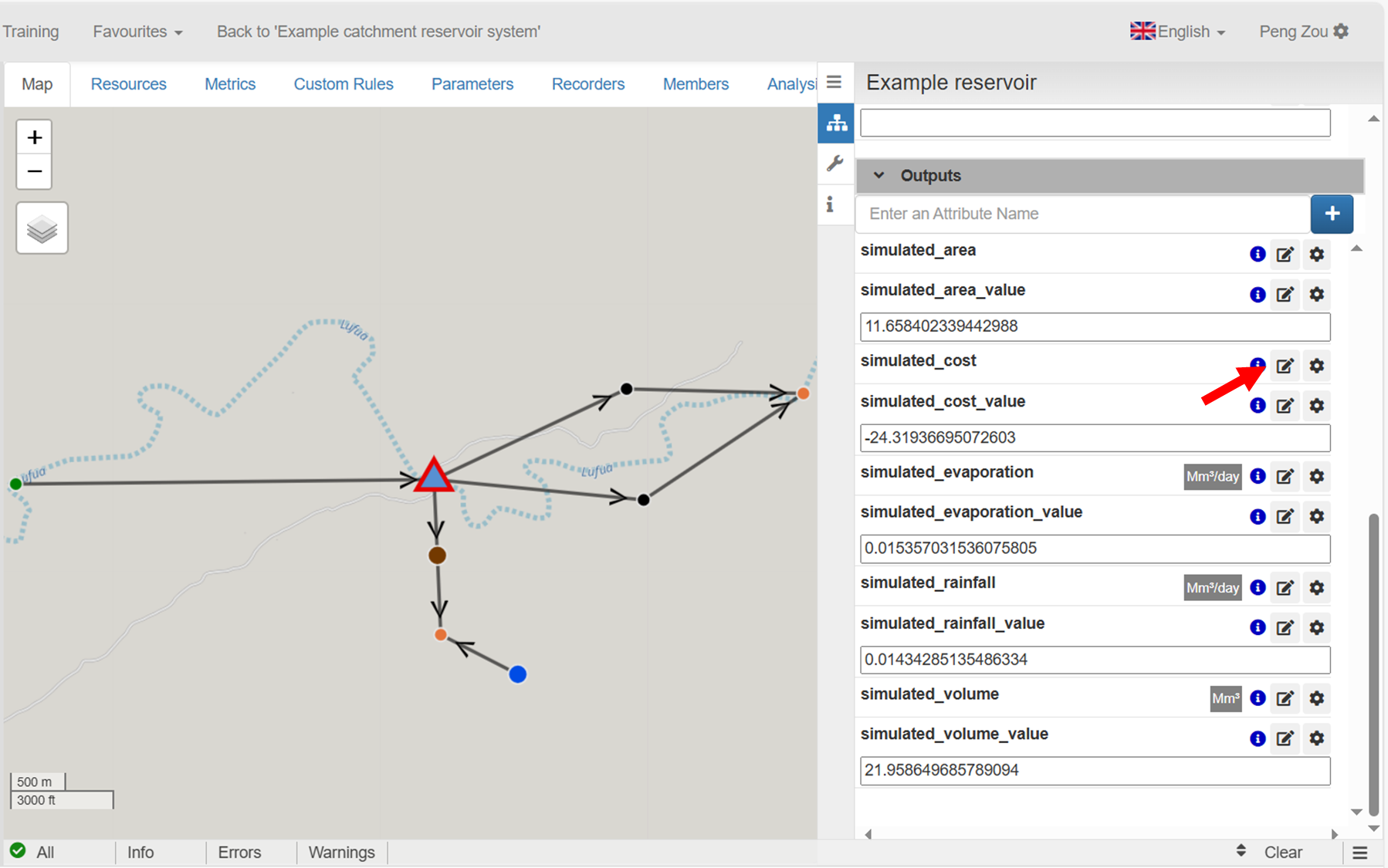

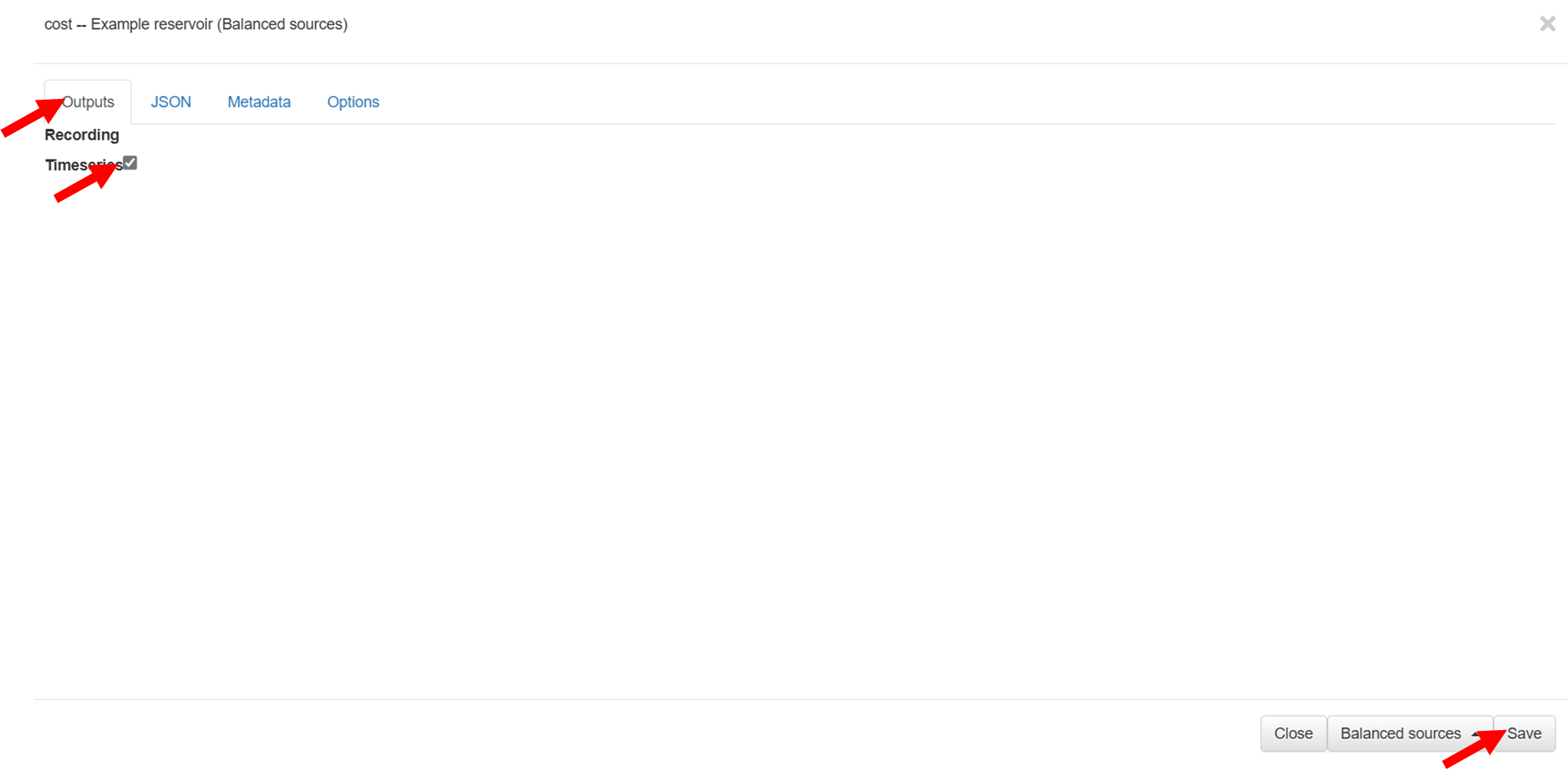

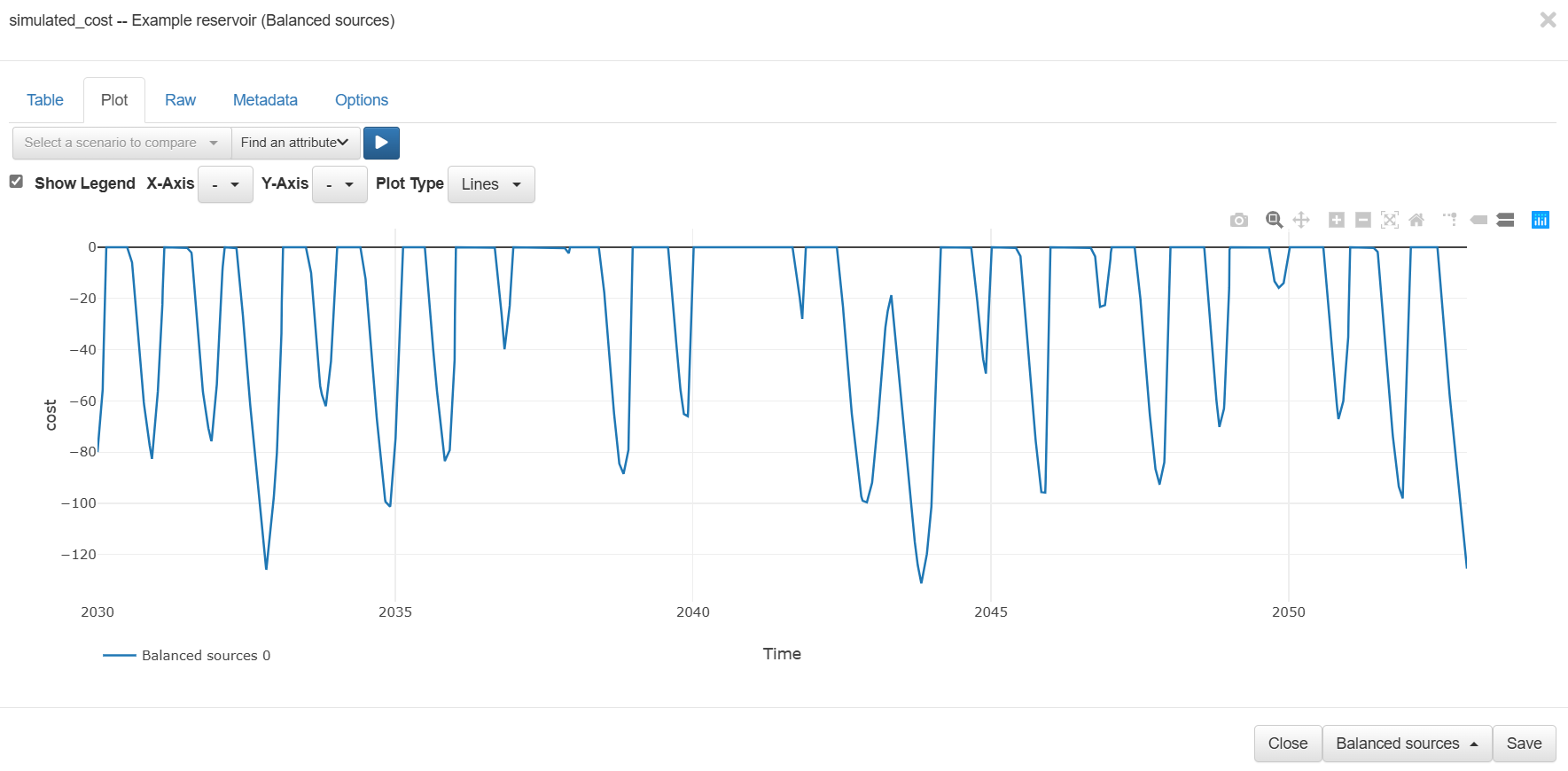

如你所见 **平衡场景** 这是 **橙色**，使用地下水源的次数少于前一方案。如果地下水节点的许可证有限，则这是保持许可证量的一种方法。这将在另一个教程中显示。 *提示：只要勾选分配罚款 Pywr 的时间序列输出，你就能看到模拟的分配惩罚\_参数。目前，模拟罚款被称为 **模拟\_成本** 在水库上*
