# 损失 Link Node

## 一般描述

一个 **丢失链接** 允许定义流经此节点的固定比例流量损失。损失链接通常用来表示 **饮用水处理工程** 这会造成一些过程损失。

定义的最大和最小流量属性应用于损失后的净输出。

节点本身在其 flow 属性中记录净输出（任何连接的记录器都将使用该属性）。

## 主要属性

<table><thead><tr><th width="181.33333333333331">姓名</th><th width="342">描述</th><th>必填项</th></tr></thead><tbody><tr><td>分配罚款</td><td>通过节点的单位流量成本</td><td>可选</td></tr><tr><td>损失系数</td><td>损失_因子：浮点数或参数。流经此节点的流量比例。必须大于或等于零。该值要么是总流量的比例，要么是净流量的比例，具体取决于<code>损失的价值_因子类型</code>。</td><td>可选，默认为 0</td></tr><tr><td>损失因子类型</td><td>选择 “总流量” 或 “净流量”（默认），指定损失系数是分别作为总流量还是净流量的比例适用。</td><td>可选，默认为 “net”</td></tr><tr><td>最大流量</td><td>节点上的最大流量约束</td><td>可选</td></tr><tr><td>最小流量</td><td>节点上的最小流量约束</td><td>可选</td></tr></tbody></table>

## 示例

<figure><img src="https://2456626420-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FroBiEJ09sszXPUfSv5uk%2Fuploads%2Fgit-blob-fc182b8aa043189e95c262a8fdd0c268b93fdd59%2Fimage%20(62).png?alt=media" alt=""><figcaption></figcaption></figure>

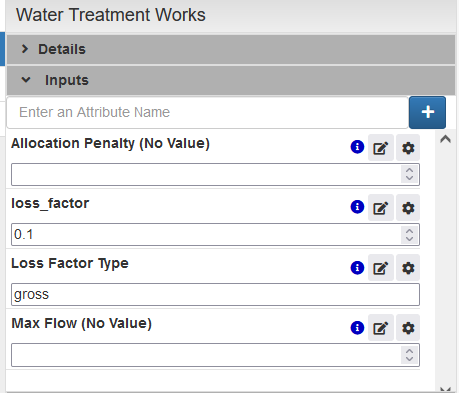

在此示例中，10流入节点的总水量中有百分比流失。


---
