# Adicionar dados aos nós

Use os dados na tabela online do Excel abaixo para este tutorial.

[https://docs.google.com/spreadsheets/d/1J\_wU\_-U\_ZlOLdbmg7rgW1HMt14JfHQHS/edit? usp=sharing\ \&ouid=103412600775811717846\ \&rtpof=true\ \&sd=true](https://docs.google.com/spreadsheets/d/1J_wU_-U_ZlOLdbmg7rgW1HMt14JfHQHS/edit?usp=sharing\&ouid=103412600775811717846\&rtpof=true\&sd=true)

Assista a este vídeo para obter mais detalhes.

{% embed url="<https://www.youtube.com/watch?v=Eknj7-lOYEE>" %}

Queremos incluir **séries temporais** para o fluxo no nó de captação e **escalar** valores para Demanda.

1. Clique duas vezes sob demanda e atualize os atributos na seção Entradas, conforme mostrado abaixo:

Fluxo máximo de\ \_x = 0

Penalidade de alocação = 0

Talvez seja necessário clicar na edição ![](https://2780811623-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Ft4nCBOybr5foLIqkmwa6%2Fuploads%2Fgit-blob-5d6fb2403991e0c84dcd26592e97e6389a86b313%2F0%20\(11\).png?alt=media) botão para alterar os valores.

![](https://2780811623-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Ft4nCBOybr5foLIqkmwa6%2Fuploads%2Fgit-blob-40b6f5a67c362e4394ab677001d840ac253147eb%2F1%20\(11\).png?alt=media)

1. Clique duas vezes no nó de captação, no painel direito dentro da seção Entradas, em **corrente** atributo clique no botão de edição ![](https://2780811623-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Ft4nCBOybr5foLIqkmwa6%2Fuploads%2Fgit-blob-49509e5ae415d4f4ac85b79626f0bd2ba932f6dc%2F2%20\(10\).png?alt=media).

![](https://2780811623-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Ft4nCBOybr5foLIqkmwa6%2Fuploads%2Fgit-blob-d6488c41780312c7915350f675b2ee7827dbea3d%2F3%20\(10\).png?alt=media)

uma nova janela aparecerá, clique em **Opções**, selecione **PYWR\_QUADRO DE DADOS** e clique em **Salvar**

![](https://2780811623-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Ft4nCBOybr5foLIqkmwa6%2Fuploads%2Fgit-blob-4cc005f5a3ef2c2c5467e9d53b8b8a9f5ccdb442%2F4%20\(10\).png?alt=media)

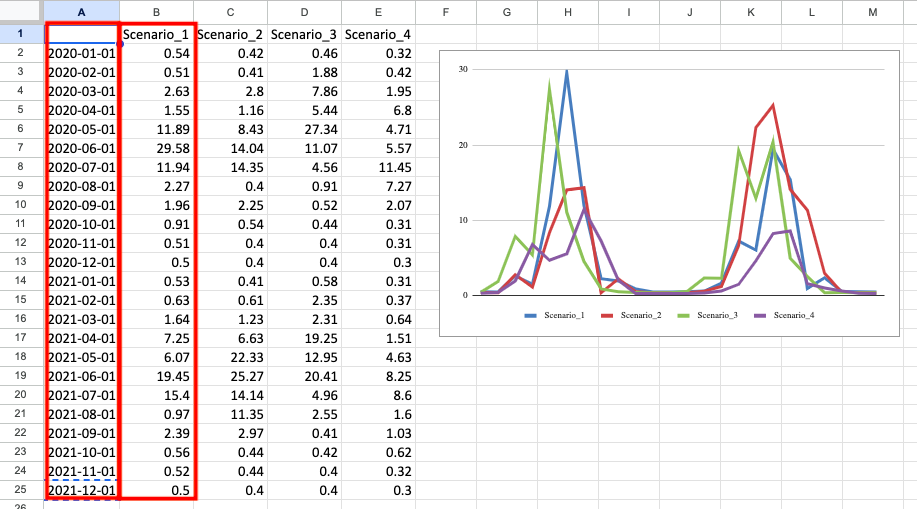

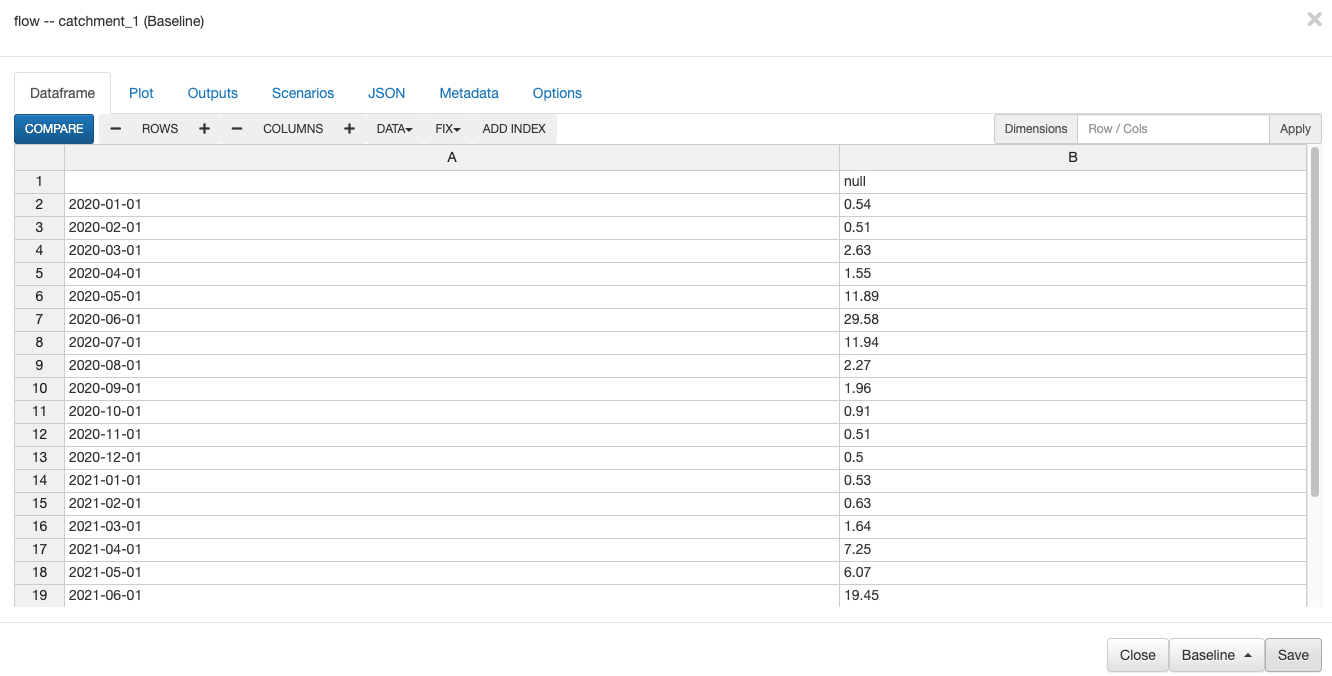

1. A janela será atualizada para a guia Dataframe. Copie os dados do arquivo Excel usando o link acima e cole conforme mostrado na imagem. Observe que duas colunas devem ser usadas, a coluna A para o índice de data e hora e a coluna B para os valores dos dados. Clique **Salvar. Para mais detalhes, assista ao vídeo.**

<figure><img src="https://2780811623-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Ft4nCBOybr5foLIqkmwa6%2Fuploads%2Fgit-blob-3e3d5775f3c2c5ff0c8e0c4a8696e49ec5b6b309%2FScreen%20Shot%202024-08-08%20at%2012.56.21%20AM.png?alt=media" alt=""><figcaption></figcaption></figure>

<figure><img src="https://2780811623-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Ft4nCBOybr5foLIqkmwa6%2Fuploads%2Fgit-blob-8c230b5625a84ca1aa683a7808eb1c8139347655%2FScreen%20Shot%202024-08-08%20at%2012.57.23%20AM.png?alt=media" alt=""><figcaption></figcaption></figure>


---
