# Parámetro de índice de curva de control

## Ejemplo

```
{
	«tipo»: «parámetro controlcurveindex»,
	«storage_node»: «Nombre del depósito»,
	«curvas de control»: [
		{
			«type»: «parámetro de perfil mensual»,
			«valores»: [
				0.45,
				0.45,
			  	0.45,
				0.45,
				0.45,
				0.45,
				0.45,
				0.45,
				0.45,
				0.45,
				0.6,
				0.6
				]
		},
		{
			«tipo»: «constante»,
			«valor»: 0.4
		},
		{
			«tipo»: «constante»,
			«valor»: 0.1
		}
	]
}

```

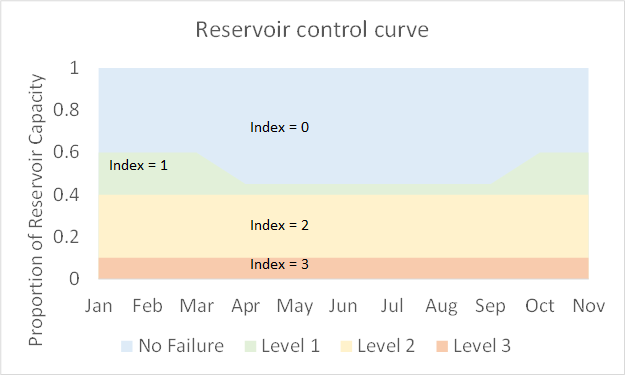

El código anterior define 3 curvas de control del depósito denominadas «Nombre del depósito». Devuelve un índice en función de qué tan lleno esté el depósito:

<figure><img src="https://2948356152-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FFNe7L0vZu0Va3aSbFYVf%2Fuploads%2Fgit-blob-1b8b654f6d1edc5d254635ca734e6957cbc92586%2Fimage%20(124).png?alt=media" alt=""><figcaption></figcaption></figure>

Para ver cómo se usa este índice con un[ Parámetro de matriz indexada ](https://water-strategy.gitbook.io/water-strategy/modelling-fundamentals/parameters/indexed-array-parameter)hacer clic [aquí](https://water-strategy.gitbook.io/water-strategy/modelling-fundamentals/parameters/indexed-array-parameter/#Example).


---
